Instructions For Use

Plus Key

Plus Key Roll provides the connection between mobile devices and automation products such as roller shutters, curtains, window shutters and sun shades. Plus Key Roll technology works with mobile devices via Bluetooth Smart. Please see the technical information and installation notes given below.



1. Technical Specifications            Plus Key Roll

Product Code and Name

P01 Plus Key Roll

Operating Voltage

230V (-20 %, +10 %)  / 50Hz

Operating Frequency

2.4 GHz

Area Of Usage

All tubular motors and central engines running of the range of 330 Nm to 10 Nm

Registered Devices

10 mobile devices or control devices

Distance of Maximum Control

50 meter

Dimensions

Height =76mm, Width =110mm, Depth =29.50mm

Protection Code

IP20

Signal Strength

1 mW

Transmission Type

Two directional

Encoding

Yes

Control Current

<=1mA

Operating Temperature

0 °C ~ +45 °C

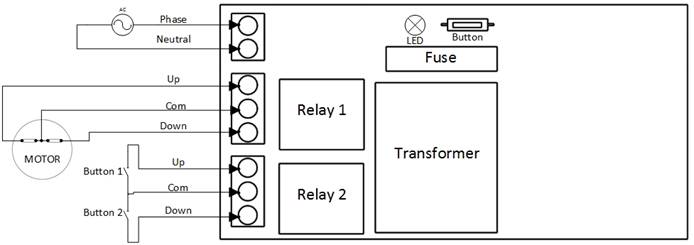

Wiring Diagram

2. Plus Key Roll' s Pairing With Mobile Device Or Remote Controls



2. a. Plus Key Roll' s Pairing With Mobile Device

For Android Devices:

Step 1: For Android devices you need to download “Pluskey” aplication from the “Google Play Store”.

Step 2: When you open your application, you will see empty page. When you add new devices, You can see your

              devices from this page.

Step 3: You can use the menu button to add a new device. Then you will click “New Device” button.

Step 4: To make a connection between your device and your pruduct, press the “Authorize” button. If the product

              was not found, click the scan button.

Step 5: Now, find the product and enter the password as “123456” and “Save”.

Step 6: You have added your new device and it is appeared on the list. Now, you can control it the way you want.



Note:

1. Device "Authorize" allows the connection within 30 sec after pressing the button.

2. When you enter the new device chapter, press the "Authorize" button after waiting 3 seconds to press the "scan"   button.



For Apple Devices:

Step 1: For Apple Devices You need to download “Pluskey” aplication from the “Apple Store”.

Step 2: When you open your application, you will see empty page. When you add new devices, You can see your

              devices from this page.

Step 3: You can access the menu from top-left corner. Click the new device button.

Step 4: Press the “Authorize” butoon. Your device can make a new connection in 30 seconds.

Step 5: Click the “save” button, enter “123456” an match it. Your device is ready.

Step 6: If you want to chang the name or icon of your device, you can change it from the devices section.



Note:

1. Device "Authorize" allows the connection within 30 sec after pressing the button.



2. b. Plus Key Roll' s Pairing With Remote Control



Step 1: After Plus Key Roll device installation is complete, You press the “Authorize” button.

Step 2: You should press to remote kontrol connection button.

Step 3: It is defined for the remote control with Plus Key Roll.



Note: Device "Authorize" allows the connection within 30 sec after pressing the button.



3. Remote Control And Mobile Devices Delete To Defined For Pluskey



Hold for 10 sec "Authorize" button. When you left button, you will hear the sound from the relay. After that any devices don’t connection to Plus Key Roll. If you want to add new devices, you should  return to episode 2.



4. Services



·               If your device is fault, You  shouldn't interfere to the circuit board. If you interfere to the circuit board, It will void your warranty.

·        Our website is www.pluskeys.com . You should visit our website on the fault situation.

·        Please refer to installation instructions for the problems occurred with installation.

·        If warranty conditions continues, You  shouldn't interfere to the device.



5. Installation Instructions



·        You should be selected area without wet for assembling your Plus Key Roll device.

·        High humidity affect the device operation in the direction negative. The earthing wire should be connected.

·        Plus Key Roll devices with transmitter operates at a minimum distance of 1 m.

·        External button type should be chosen to push-drop type. (Permanent button may cause problems in the long run.)
